DQ SERIES SYSTEM INFORMATION

The Dual-Air Quiet (DQ) Systems are designed to provide refrigerated air to 55–65°F. DQ evaporators return air at the bottom and supply two-way air discharge 10–12 feet in both directions at a medium velocity airflow. This promotes fantastic circulation in long and narrow display cases.
DQ evaporators are available in standard capacities from 1,800 to 4,600 BTU per hour and are used with an R134a refrigerant.

FEATURES

  • Air defrosting coil requires no additional heater
  • Low-noise fan blades
  • High performance staggered coils with copper tubing mechanically expanded into aluminum fins
  • Insulated rust-proof aluminum housing
  • Thermally protected permanently lubricated motor
  • Automatic expansion valve (standard) ensures constant coil temperature to promote “Humidity Balance”
  • Pump-down solenoid valve (standard) protects compressor in the event of leaks.

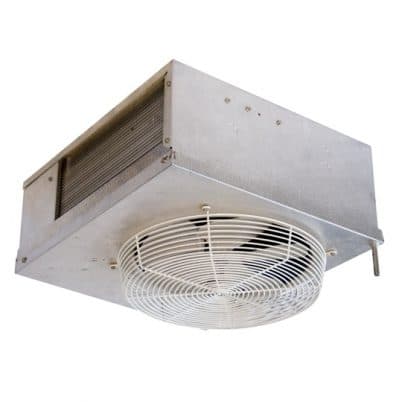

Dual Air Quiet Wine Cellar Cooling Unit DQ Series

Dual Air Quiet Wine Cellar Cooling Unit DQ Series

AVAILABLE OPTIONS

Our Application Engineers can help you design the system you need. Call us today at (323) 578-3330 and we’ll help you get the right product for your project.

DQ COOLING SYSTEM TYPICAL INSTALLATION

  • Keep line sets as short as possible
  • Excessive number of turns will cause refrigerant flow problems. This could cause early compressor failure. Suction line accumulators are recommended. Required if working lower than the normal 55-65° operating range from wine cellar.
  • Drain line must always flow downhill to drain or pump.

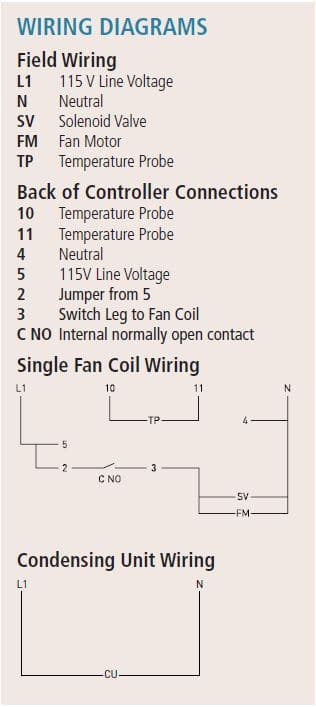

  • The system is controlled by a pump down control system. There is no control wiring between thermostat and condensing unit.
  • The line connections at Fan Coil and Condensing Unit may not be the same as the required line sizes
  • Standard line sets should be 50’ or less. Extended runs may require larger line sizes and 3oz. oil must be added for every 10’ over 35’

DQ TE COOLING SYSTEM TYPICAL INSTALLATION

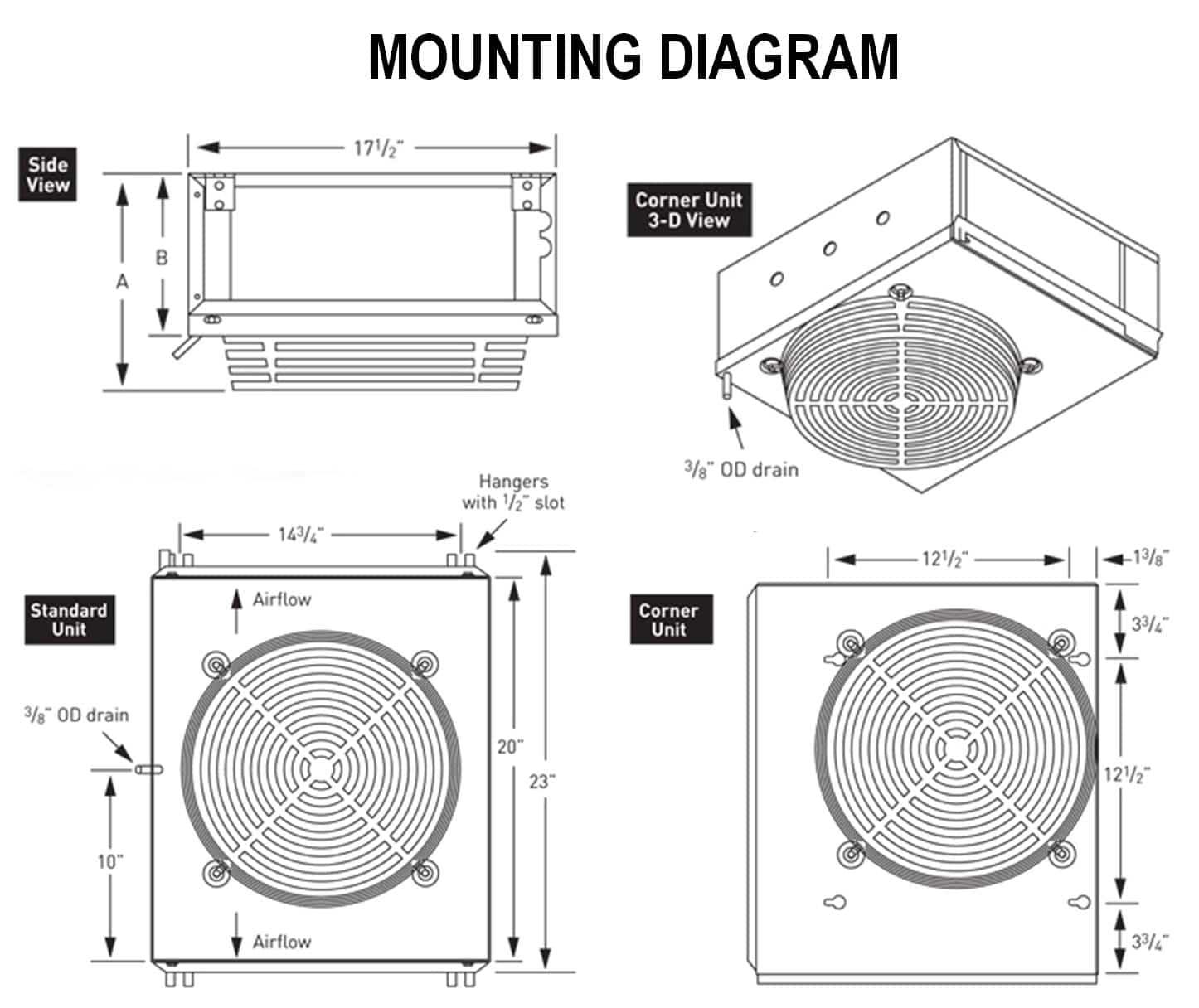

Mounting Diagram DQ Series Wine Cellar Cooling Unit

Mounting Diagram DQ Series Wine Cellar Cooling Unit

  • Keep line sets as short as possible.
  • Excessive number of turns will cause refrigerant flow problems. This could cause early compressor failure.
  • Suction line accumulators are recommended, and required if working lower than the normal 55-65° operating range from wine cellar.
  • Drain line must always flow downhill to drain or pump.
  • The system is controlled by a pump down control system.
  • There is no control wiring between thermostat and condensing unit.
  • The line connections at Fan Coil and Condensing Unit may not be the same as the required line sizes.
  • Standard line sets should be 50’ or less. Extended runs may require larger line sizes and 3oz. oil must be added for every 10’ over 35’
DQ Series Wine Cooling System Installation

DQ Series Wine Cooling System Installation
